Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling

Name: Huawei Switch S570028CPWREI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling
Brand: Huawei
Price: 2320 USD

Quality Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling for sale

Brand Name : Huawei

Model Number : S5700-28C-PWR-EI

MOQ : 1

Price : $2320

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 190pcs

Delivery Time : 3-5 days

Description : S5700-28C-PWR-EI(24 Ethernet 10/100/1000 PoE+ ports,with 1 interface slot,without power module)

Condition : Original New; In stock

Contact Now

Huawei Switch S5700-28C-PWR-EI (02352361)

Huawei S5700-28C-PWR-EI is a Layer 3 Ethernet switch. It supports 24 × 10/100/1000 Base-T (GE PoE) ports. It also provides two extended slots, one for an uplink sub-card and the other for a stack card.

Quick Specification

Table 1 shows the quick specification.

Model	S5700-28C-PWR-EI
Part Number	02352361
Downlink Ports	24 × PoE+ 10/100/1000BASE-T ports
Extended Slots	2
Forwarding Performance	96 Mpps
Switching Capacity	256 Gbit/s
Stack	Supported
Stack Ports	Two stack ports available on each stack card
Power	2 power modules slot (need to purchase additional power)
Heat Dissipation	Pluggable fan modules for forced air cooling
Memory (RAM)	256 MB
Flash	32 MB
Dimensions (W x D x H)	44.2 cm x 42 cm x 4.36 cm

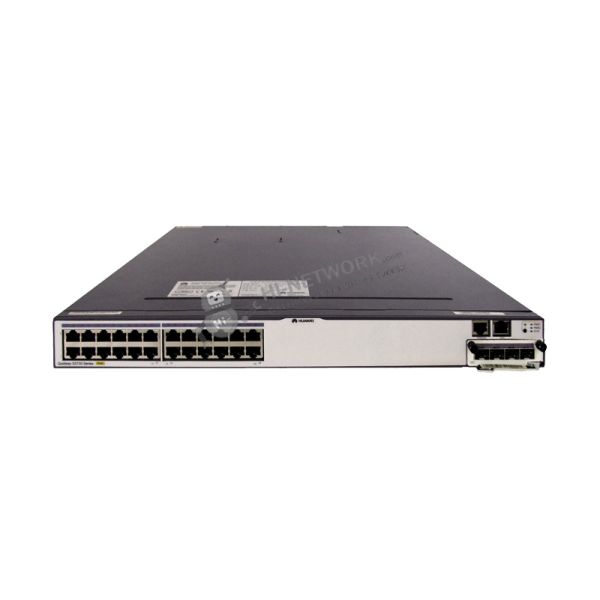

Figure 1 shows the appearance of S5700-28C-PWR-EI.

Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling

Product Details

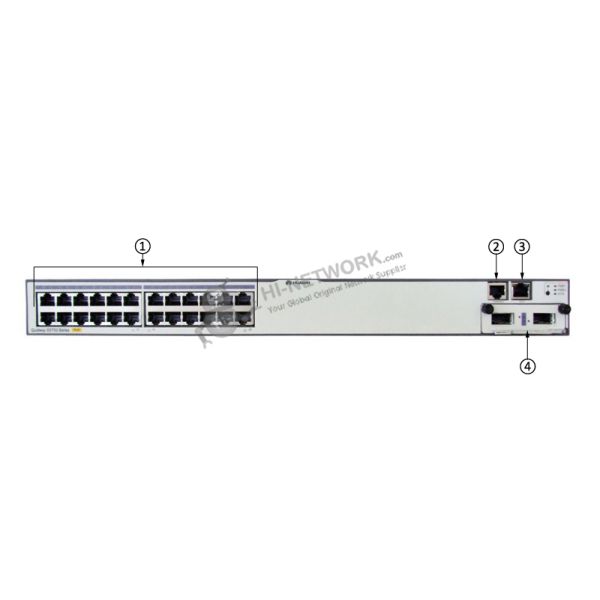

Figure 2 shows the front panel of S5700-28C-PWR-EI.

Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling

Note:

(1)	Twenty-four PoE+ 10/100/1000BASE-T ports	(3)	ETH management port
(2)	One console port	(4)	Sub-card slot with installed sub-card

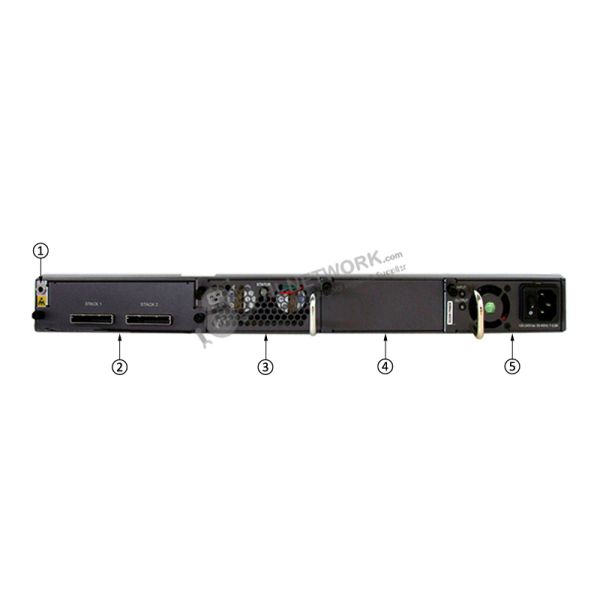

Figure 3 shows the back panel of S5700-28C-PWR-EI.

Huawei Switch S5700-28C-PWR-EI with 2 Extended Slots Pluggable Fan Modules and Forced Air Cooling

Note:

(1)	ESD jack	(4)	Power module slot 2
(2)	Rear card slot	(5)	Power module slot 1
(3)	Fan slot

The Transceiver

Table 2 shows the recommended transceivers.

Model	Description
GE-SFP Optical Transceiver
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
10G-SFP+ Optical Transceiver
SFP-10G-USR	10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC)
OMXD30000	Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC)
OSX010000	Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC)

Compare to Similar Items

Table 3 shows the comparison of Huawei S5700-28C-PWR-EI and S5700-52C-PWR-EI.

Models	S5700-28C-PWR-EI	S5700-52C-PWR-EI
Downlink Ports	24 × PoE+ 10/100/1000BASE-T ports	48 × PoE+ 10/100/1000BASE-T ports
Uplink Ports	Sub-cards supported the uplink ports.	Sub-cards supported the uplink ports.
Power Supply	Two power module slots (need to purchase additional power)	Two power module slots (need to purchase additional power)
PoE Supported	Yes	Yes
