Huawei Switch S5700-28C-HI (02353630)
The S5700-28C-HI is advanced Ethernet switch based on new generation of high-performance hardware and Huawei Versatile Routing Platform (VRP). With 24 GE ports (10/100/1000Base-T), it provides a large switching capacity, high-density GE interfaces for users, besides, it can be equipped with multiple types of card modules and power modules to meet the different demands of users. All these features make the S5700-28C-HI the best choice as an access switch on large and medium-sized campus networks or data centers and aggregation switch on small campus networks. The S5700-28C-HI integrates many advanced technologies in terms of reliability, security, and energy conservation in order to help enterprise customers build a next-generation IT network.
Quick Specification
Table 1 shows the quick specification.
| Model | S5700-28C-HI |
| Part Number | 02353630 |
| Ports | 24 × 10/100/1,000 Base-T ports |
| Extended Slots | 1 extended slot |
| Memory (RAM) | 512 MB |
| Flash | 64 MB |
| MAC Address Table Size | 32 MAC |
| Subcard Supported | 4 x 1,000 Base-X SFP subcard
2 x 10 GE SFP+ subcard
4 x 10 GE SFP+ subcard |
| Voltage Required | AC:
Rated voltage range: 100V to 240V, 50/60 Hz Maximum voltage range: 90V to 264V, 50/60 Hz
DC:
Rated voltage range: –48V to –60V, DC Maximum voltage range: –36V to –72V, DC |
| Power Device | Do double hot-swappable AC/DC power supplies |
| Power Consumption Operational | <76 W |
| Forwarding performance | 96 Mpps |
| Switching capacity | 256 Gbit/s |
| Dimensions (W x D x H) | 442 mm x 220 mm x 43.6 mm |
| Package Weight | 11.2 kg |
| PoE | Not supported |

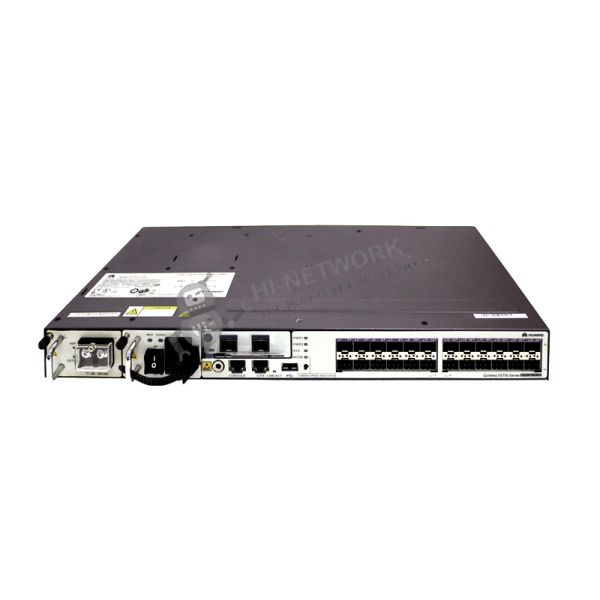

Figure 1 shows the appearance of S5700-28C-HI.
Product Details

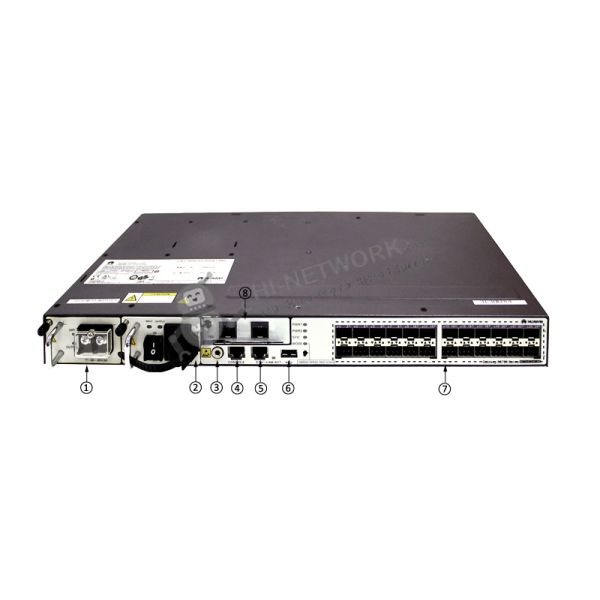

Figure 2 shows the front panel of S5700-28C-HI.
Note:
| (1) | Power module slot 1 | (5) | ETH management port |
| (2) | Power module slot 2 | (6) | USB port |
| (3) | ESD jack | (7) | Twenty-four 10/100/1000BASE-T ports |
| (4) | One console port | (8) | Front card slot |
* The front card slot is equipped with the card module, but the card module should be purchased separately.
* Before installing or maintaining a switch, wear an ESD wrist strap and insert the other end of the ESD wrist strap into this ESD jack.
* The power module slot 1 has been installed with the DC power module.
* The power module slot 2 has been installed with the AC power module.

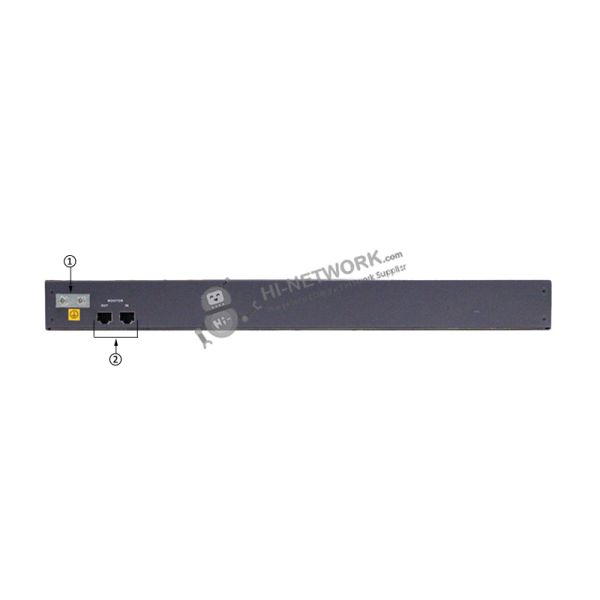

Figure 3 shows the back panel of S5700-28C-HI.
Note:
| (1) | Ground screw | (2) | Monitoring port |
* The ground screw is used with a ground cable. The switch has two ground screws, any of which can be used to install a ground table.
* The monitoring port monitors the cabinet door, power module, battery power, and power supply of the air conditioner.
Recommended Modules
Table 2 shows the recommended modules.
| Model | Description |
| Power Module |
| W0PSA1701 | 170W AC Power Module (Used In HI Series) |
| ES5M0PSD1700 | 170W DC power module (Used In HI Series) |
| Optical Transceivers |
| OMXD30000 | Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.3km, LC) |
| OSX010000 | Optical Transceiver, SFP+, 10G, Single-mode Module (1310nm, 10km, LC) |
| SFP-10G-USR | 10GBase-USR Optical Transceiver, SFP+, 10G, Multi-mode Module (850nm, 0.1km, LC) |
| eSFP-GE-SX-MM850 | Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.5km, LC) |
| SFP-GE-LX-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC) |
| S-SFP-GE-LH40-SM1310 | Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC) |
| S-SFP-GE-LH40-SM1550 | Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC) |
| Copper Transceivers |
| SFP-1000BaseT | 1000BASE-T (RJ45) SFP Electrical Module, Auto Negotiate, 100m |
| Card |
| ES5D00X2SA00 | 2 10 Gig SFP+ interface card (used in S5700HI series) |
| ES5D00X4SA00 | 4 10 Gig SFP+ interface card (used in S5700HI series) |
| ES5D00G4SC00 | 4 Gig SFP interface card (used in S5700HI series) |
Compare to Similar Items
Table 3 shows the comparison of Huawei S5700-28C-HI, S5700-28C-HI-AC and S5700-28C-HI-24S.
| Models | S5700-28C-HI | S5700-28C-HI-AC | S5700-28C-HI-24S |
| Fixed Ports | 24 x 10/100/1,000 Base-T | 24 x 10/100/1,000 Base-T | 24 x 100/1,000 Base-X |
| Extended Slots | 1 extended slot | 1 extended slot | 1 extended slot |
| Power Supply | Double hot-swappable AC/DC | Double hot-swappable AC/DC | Double hot-swappable AC |
| Forwarding Performance | 96 Mpps | 96 Mpps | 96 Mpps |
| Switching Capacity | 256 Gbit/s | 256 Gbit/s | 256 Gbit/s |
| Power Consumption | <76W | <76W | <80W |
