Huawei CloudEngine S5731-S24T4X-D Network Switch with Intelligent Stack Simplified O&M and Mature IPv6 Features

Name: Huawei CloudEngine S5731S24T4XD Network Switch with Intelligent Stack Simplified OampM and Mature IPv6 Features
Brand: Huawei
Price: 767 USD

Quality Huawei CloudEngine S5731-S24T4X-D Network Switch with Intelligent Stack Simplified O&M and Mature IPv6 Features for sale

Brand Name : Huawei

Model Number : S5731-S24T4X-D

MOQ : 1

Price : $767

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 200ps

Delivery Time : 3-5 days

Description : S5731-S24T4X-D (24*10/100/1000BASE-T ports, 4*10GE SFP+ ports, DC power)

Condition : Original New; In stock

Contact Now

Huawei CloudEngine S5731-S24T4X-D (98011860/98011860-001)

The CloudEngine S5731-S series switches were developed based on next-generation high-performing hardware and the Huawei Versatile Routing Platform (VRP). The CloudEngine S5731-S supports simplified operations and maintenance (O&M), intelligent stack (iStack), flexible Ethernet networking. It also provides enhanced Layer 3 features and mature IPv6 features. The CloudEngine S5731-S can be used in various scenarios. For example, it can be used as an access or aggregation switch on a campus network or as an access switch for Metropolitan Area Network.

Quick Specification

Table 1 shows the Quick Specification.

Model	S5731-S24T4X-D
Part Number	98011860/98011860-001
Description	S5731-S24T4X-D (2410/100/1000BASE-T ports, 410GE SFP+ ports, DC power)
Dimensions without packaging (H x W x D) [mm(in.)]	Basic dimensions (excluding the parts protruding from the body): 43.6 mm x 442.0 mm x 220.0 mm (1.72 in. x 17.40 in. x 8.66 in.) Maximum dimensions (the depth is the distance from ports on the front panel to the parts protruding from the rear panel): 43.6 mm x 442.0 mm x 236.0 mm (1.72 in. x 17.40 in. x 9.29 in.)
Weight with packaging [kg(lb)]	4.62 kg (10.19 lb)
Typical power consumption [W]	57 W
Maximum power consumption [W]	76 W
Memory	2 GB
Flash memory	1 GB in total. To view the available flash memory size, run the display version command.
PoE	Not supported

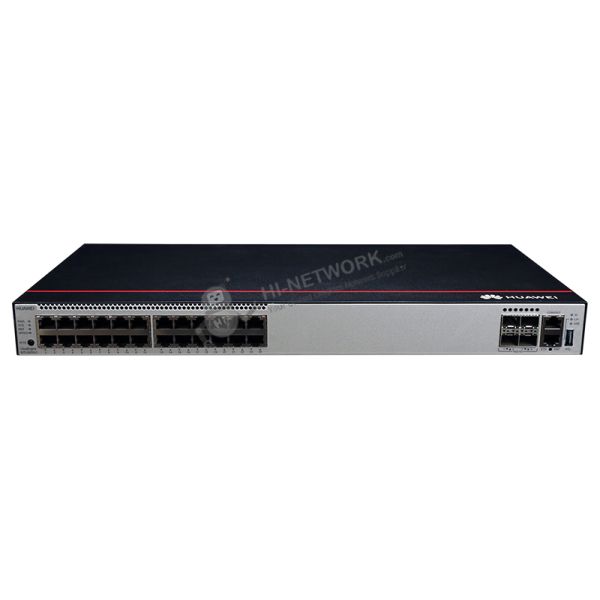

Figure 1 shows the appearance of S5731-S24T4X-D.

Huawei CloudEngine S5731-S24T4X-D Network Switch with Intelligent Stack Simplified O&M and Mature IPv6 Features

Product Details

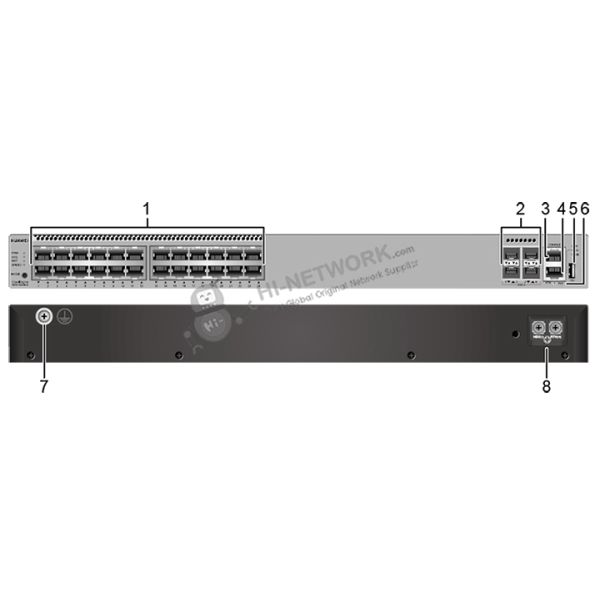

Figure 2 shows the structure of S5731-S24T4X-D.

Huawei CloudEngine S5731-S24T4X-D Network Switch with Intelligent Stack Simplified O&M and Mature IPv6 Features

Note:

(1)	Twenty-four 10/100/1000BASE-T ports	(5)	One USB port
(2)	Four 10GE SFP+ ports	(6)	One PNP button
(3)	One console port	(7)	Ground screw
(4)	One ETH management port	(8)	DC power terminal
