Huawei Switch S5700-28P-LI-AC Layer 2 Ethernet Network Switch with 24 Ethernet 10/100/1000 Ports and Energy-Saving Technology

Name: Huawei Switch S570028PLIAC Layer 2 Ethernet Network Switch with 24 Ethernet 101001000 Ports and EnergySaving Technology
Brand: Huawei
Price: 463 USD

Brand Name : Huawei

Model Number : S5700-28P-LI-AC

MOQ : 1

Price : $463

Payment Terms : T/T,Western Union,MoneyGram

Supply Ability : 168pcs

Delivery Time : 3-5 days

Description : S5700-28P-LI-AC(24 Ethernet 10/100/1000 ports,4 Gig SFP,AC 110/220V)

Condition : Original New; In stock

Contact Now

Huawei Switch S5700-28P-LI-AC (02353173)

The S5700-28P-LI-AC gigabit enterprise switch is Layer 2 Ethernet switch developed by Huawei. With 24 10/100/1000 Ethernet ports and 4 SFP ports, it provides a large switching capacity and high-density GE ports to be widely used in various application scenarios like enterprise park access, convergence, gigabit access of data center application scenarios. Using advanced energy conservation technology, the S5700-28P-LI-AC is dedicated to helping enterprise customers build a reliable and secure next-generation IT network.

Quick Specification

Table 1 shows the quick specification.

Model	S5700-28P-LI-AC
Part Number	02353173
Fixed Ports	24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports
MAC Address Table Size	16 MAC
Voltage Required	AC Rated voltage range: 100V to 240V AC, 50/60 Hz Maximum voltage range: 90V to 264V AC, 47/63 Hz
Power Device	AC power supply, supporting RPS
Power Consumption Operational	< 24W
Forwarding Performance	42 Mpps
Switching Capacity	256 Gbit/s
Dimensions (W x D x H)	442 mm x 220 mm x 43.6 mm
Weight	4.2kg

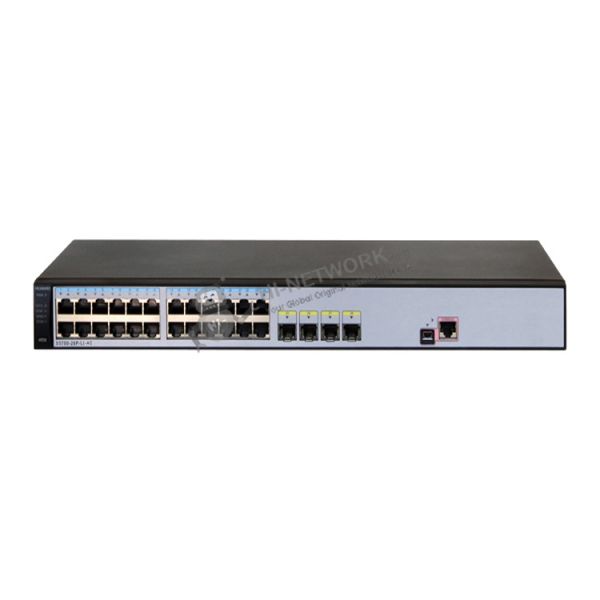

Figure 1 shows the appearance of S5700-28P-LI-AC.

Huawei Switch S5700-28P-LI-AC Layer 2 Ethernet Network Switch with 24 Ethernet 10/100/1000 Ports and Energy-Saving Technology

Product Details

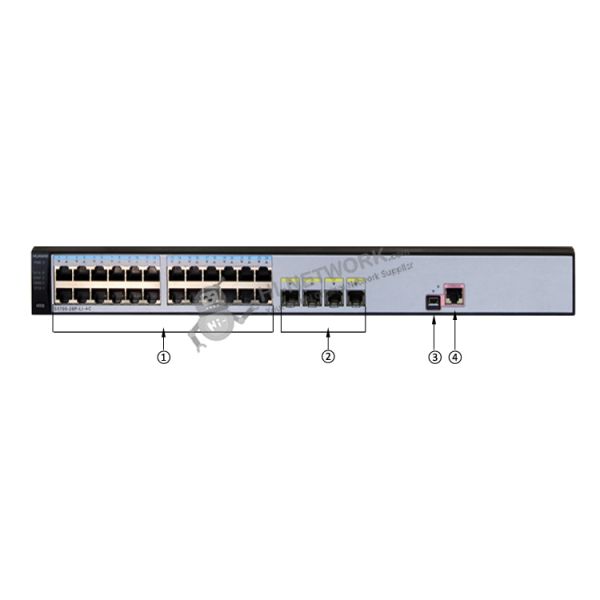

Figure 2 shows the front panel of S5700-28P-LI-AC.

Huawei Switch S5700-28P-LI-AC Layer 2 Ethernet Network Switch with 24 Ethernet 10/100/1000 Ports and Energy-Saving Technology

Note:

(1)	Twenty-four 10/100/1000BASE-T ports	(3)	One mini USB port
(2)	Four 1000BASE-X ports	(4)	One console port

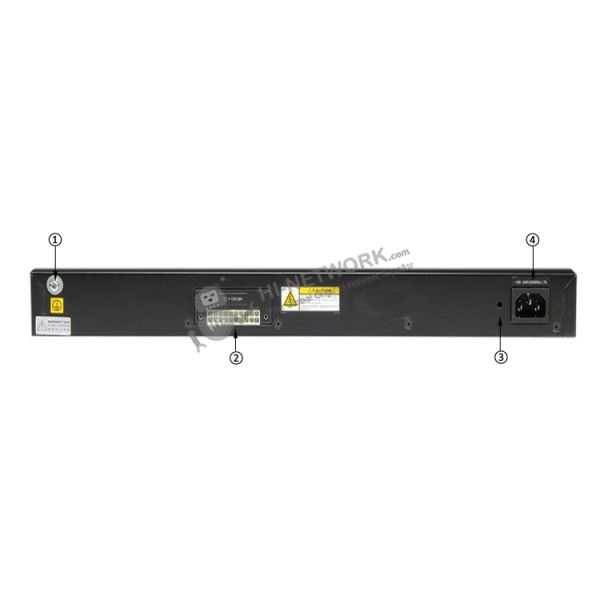

Figure 3 shows the back panel of S5700-28P-LI-AC.

Huawei Switch S5700-28P-LI-AC Layer 2 Ethernet Network Switch with 24 Ethernet 10/100/1000 Ports and Energy-Saving Technology

Note:

(1)	Ground screw	(3)	Jack for AC terminal locking latch
(2)	RPS socket	(4)	AC socket

* The ground screw is used with a ground cable.

* RPS socket is used with an RPS cable, which is not hot swappable.

* The AC terminal locking latch is not delivered with the switch.

* AC socket is used with an AC power cable.

Optical Modules

Table 2 shows the recommended optical modules.

Model	Description
GE-SFP Optical Transceiver
eSFP-GE-SX-MM850	Optical Transceiver, eSFP, GE, Multi-mode Module (850nm, 0.55km, LC)
SFP-GE-LX-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 10km, LC)
S-SFP-GE-LH40-SM1310	Optical Transceiver, eSFP, GE, Single-mode Module (1310nm, 40km, LC)
S-SFP-GE-LH40-SM1550	Optical Transceiver, eSFP, GE, Single-mode Module (1550nm, 40km, LC)
GE copper transceiver
SFP-1000BaseT	Electrical Transceiver, SFP, GE, Electrical Interface Module (100m, RJ45)

Compare to Similar Items

Table 3 shows the comparison of Huawei S5700-28P-LI-AC, S5700-28P-PWR-LI, S5700-28TP-LI-AC and S5700-28TP-PWR-LI-AC.

Models	S5700-28P-LI-AC	S5700-28P-PWR-LI	S5700-28TP-LI-AC	S5700-28TP-PWR-LI-AC
Fixed Ports	24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports	24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports	24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports, 2 x Combo 10/100/1,000 Base-T Ethernet ports	24 x 10/100/1,000 Base-T Ethernet ports, 4 x GE SFP ports, 2 x Combo 10/100/1,000 Base-T Ethernet ports
Power Supply	AC	AC	AC	AC
PoE	Not supported	Supported	Not supported	Supported
Forwarding Performance	42 Mpps	42 Mpps	42 Mpps	42 Mpps
Switching Capacity	256 Gbit/s	256 Gbit/s	256 Gbit/s	256 Gbit/s
